Technology Skill
Development of Design

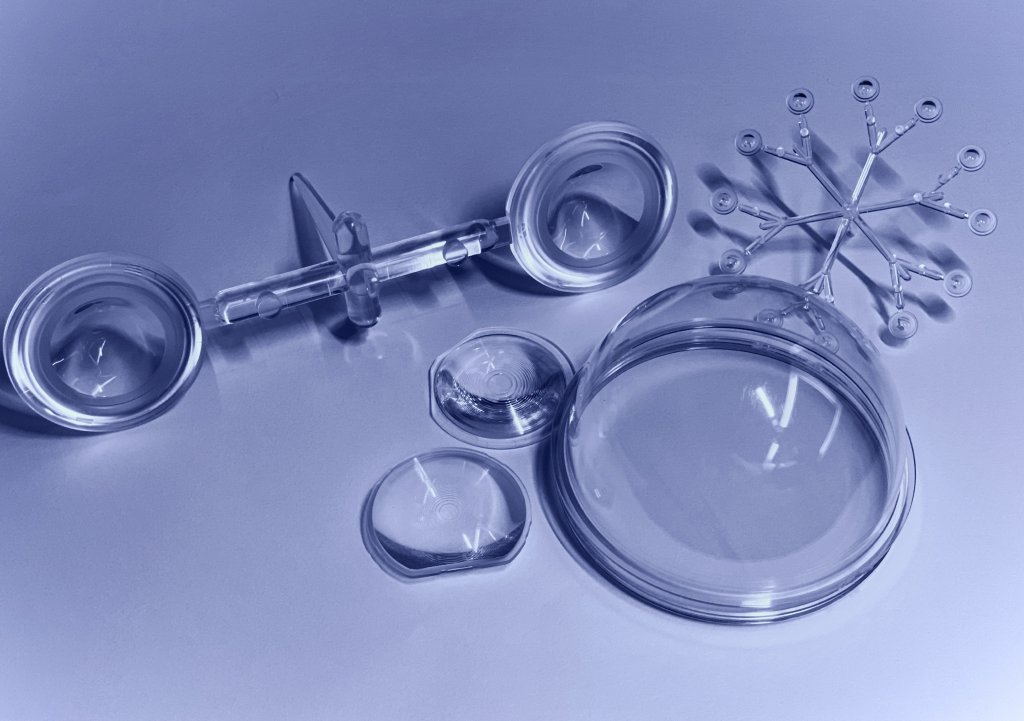

Senyun has a mold factory with professional measurement equipments and measurement capabilities such as Zeiss Ultra, UA3P, Taylor Hobson Form Talysurf and penetrating eccentric, and has various equipment and clean rooms for complete optical lens mold testing. With the cooperation of a professional team, it has become one of the few suppliers that provide overall services for mold R&D and manufacturing, ultra precision machining, mold trial condition development, and trial/mass production.
| Machining Accuracy | |||||
| CNC |
Machining Process Jig Milling (Hauser 2000) Milling (YAZDA 430) Lathing |
Component size 600 x 400 x 350 mm 420 x 300 mm 195 x 560 mm |
Dimensional < 0.5 um |
Geometric < 0.5 um |
Roughness (Ra)
|
| Grinder | Surface (Nagase 840) | 800 x 400 mm | 0.1 um | 0.1 um | |
| EDM | Wire-cut EDM | 400 x 300 mm | 2 um | 2 um | |
| EDM | 350 x 250 x 350 mm | 2 um | 2 um | 0.2 um | |
| 220 x 180 x 3000 mm | 1 um | 1 um | 0.1 um | ||
